3Ds Max Rendering
WORK in PROGRESS

Step 1 : Setting up

01 After open the 3ds Max software, and before i proceed, im checking my unit setup is in

02 And also make sure the display unit in milimeters scale too.PNG

03 Enable the autoback up setting to avoid myself from any technical problem and the file

After open the 3ds Max software, and before i proceed, im checking my unit setup is in the right scale unit which is (milimeters) to avoid to be got into wrong scale

And also make sure the display unit in milimeters scale too

Enable the autoback up setting to avoid myself from any technical problem and the file is not been saved

Step 2 : Export and Import

05 Going back to revit and open the 3D view toget every thing ready to be export.PNG

08 from this window, select autodesk Media and Entertaiment.PNG

09 and check all the setting, from light, to camera, and unit.PNG

Going back to revit and open the 3D view toget every thing ready to be export

Export the file in FBX format

Import the FBX file into 3ds Max

from this window, select autodesk Media and Entertaiment

and check all the setting, from light, to camera, and unit

Step 3 : Export and Import

10 Set the first physical camera on the floor plan as the camera that capture the exterior

11 And secondly create another physical camera as the view for my interior space.PNG

12 After the camera was placed, i adjust the Z axis of my cameror and due to yhsi particul

13 after that adjust the focal length of the camera to get the optimum view.PNG

14 apply the same on the exterior camera.PNG

10 Set the first physical camera on the floor plan as the camera that capture the exterior view

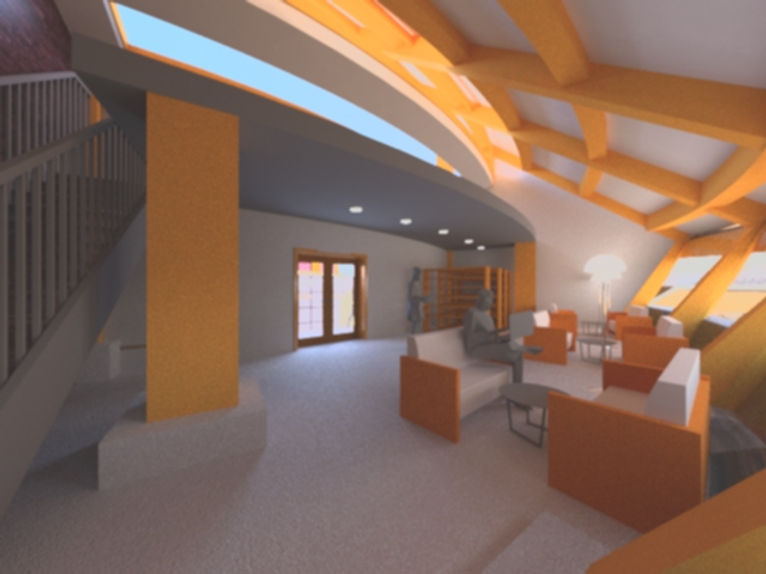

11 And secondly create another physical camera as the view for my interior space

12 After the camera was placed, i adjust the Z axis of my cameror and due to thsi particular level is lower then the ground level by 1000, therefore eye level will be around 500

13 after that adjust the focal length of the camera to get the optimum view

14 apply the same on the exterior camera, yet for my building, i set the exterior rendering view to a bird's eye level which is (12000mm) to have a view through into the centre of the building

Step 4 : Set the Sunposition

15 maximize the floor plan go to create window and click the lighting icon and place sun positioner on the floor plan

16 From the front view, adjust the sunposition

Step 5 : Pre-Rendering set up and output adjusting

17 Check the environment setting before reender the view..PNG

18 Assigned the renderer to ART Renderer.PNG

19 All set, select the exterior camera frame and click the render preview.PNG

20 Adjust teh brightness, contrast value, exposure value to get a better rendering outcome

22 set the render out put to hight and 1000 px according to the requirement and start the

17 Check the environment setting before reender the view.

18 Assigned the renderer to ART Renderer

19 All set, select the exterior camera frame and click the render preview to check the first rendering outcome

20 Adjust teh brightness, contrast value, exposure value to get a better rendering outcome

21 apply the same in another camera

22 set the render out put to hight and 1000 px according to the requirement and start the rendering

Step 6 : Post-Production

WhatsApp Image 2021-11-27 at 1.17.33 AM (1).jpeg

WhatsApp Image 2021-11-27 at 1.17.33 AM.jpeg

Due to 3Ds Max cannot read the tree imported from Revit, a post production was needed on the background by putting some tree to the surrounding and also the environment condition.
